Solar Panels
Your Key to Energy Freedom
What We Do
Our Solar Installation Process
Project Design
We create a solar design per your specifications and energy requirements
Permitting
Your approved design will be sent to the city permitting department, once approved, typically 3-5 days, we will schedule your installation.
Installation
Typical installation timeframe is from 30-40 days from the date of the signed agreement.
System Turn-On
Utility signoff is typically within 10 days of final city inspection where your system will be turned on to start saving.
Installer Resources
Solar Installer Resources provides easy-to-use guides and support for installing solar panels. From planning to maintenance, we help you every step of the way to make sure your solar project is successful.
CACTUS SOLAR
Discover Solar Products
Available Solar Panels
Q.PEAK DUO BLK ML-G10+ Enduring High Performance
- Q.PEAK DUO BLK ML-G10+ is the first 400W module for the residential market
- Takes high performance to a new level
- The G10+ module utilizes Q CELLS’ zero gap
- Q.ANTUM DUO Z technology to boost module efficiency up to 21.4%.
- The module is also backed by a 25-year product
- Performance warranty that guarantees at least 86% of nominal power up to 25 years.

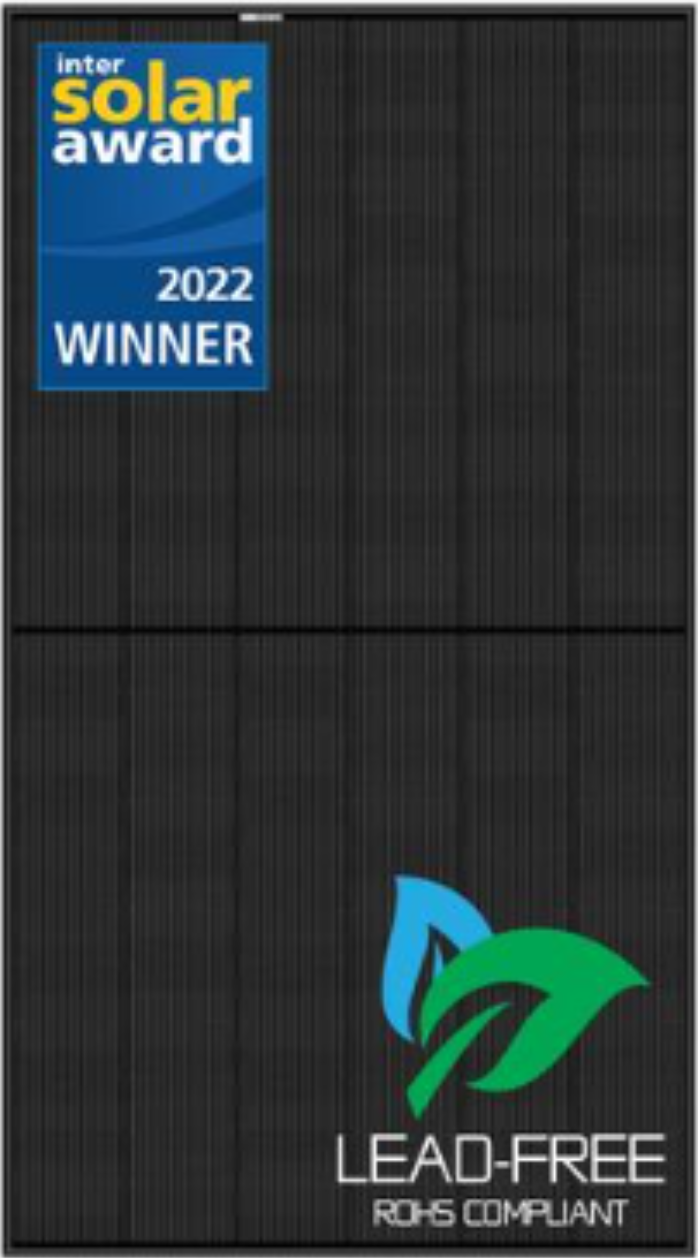

REC Alpha 400
- Photovoltaic module with 132 mono cells
- 400 Wp rated power
- Glass foil module with black anodized frame
- black foil and MC4 plug
- LxWxH: 1821x1016x30 mm
- weight: 20.5 kg
- Umpp: 42.10V, Impp: 9.51 A, Uoc: 48.80 V
- Warranty according to warranty terms REC Solar

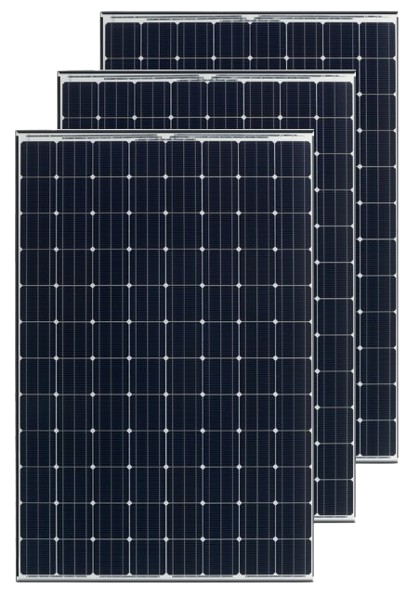

Panasonic Solar Panel
Panasonic EverVolt HJT 400 W module, 132 half-cell, 30mm, black frame, black backsheet, MC4 connector
This product is supplied with MC4 connectors
- Manufacturer Part Number: EVPV400HK
- Power Output: 400 Watts
- 132 Cell, Monocrystalline
- 30mm Depth, Black Frame, Black Backsheet
- 1000 Volts Max Voltage
- Manufacturer Warranty: 25 Years

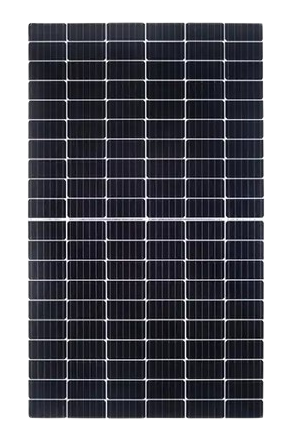

Black Backsheet & Frame (Mono)
Aesthetic appearance for residential systems
- With black backsheet & black frame
- Power range 380 ~ 405 W
- Low power loss in cell connection
- Low temperature coefficient (Pmax): -0.34 % / °C
- LID + LeTID less than 2.0%
- Lower hot spot temperature
- Better shading tolerance
- 12 / 15 years enhanced product warranty on materials and workmanship
- 25 years linear power output warranty
Available Solar inverters

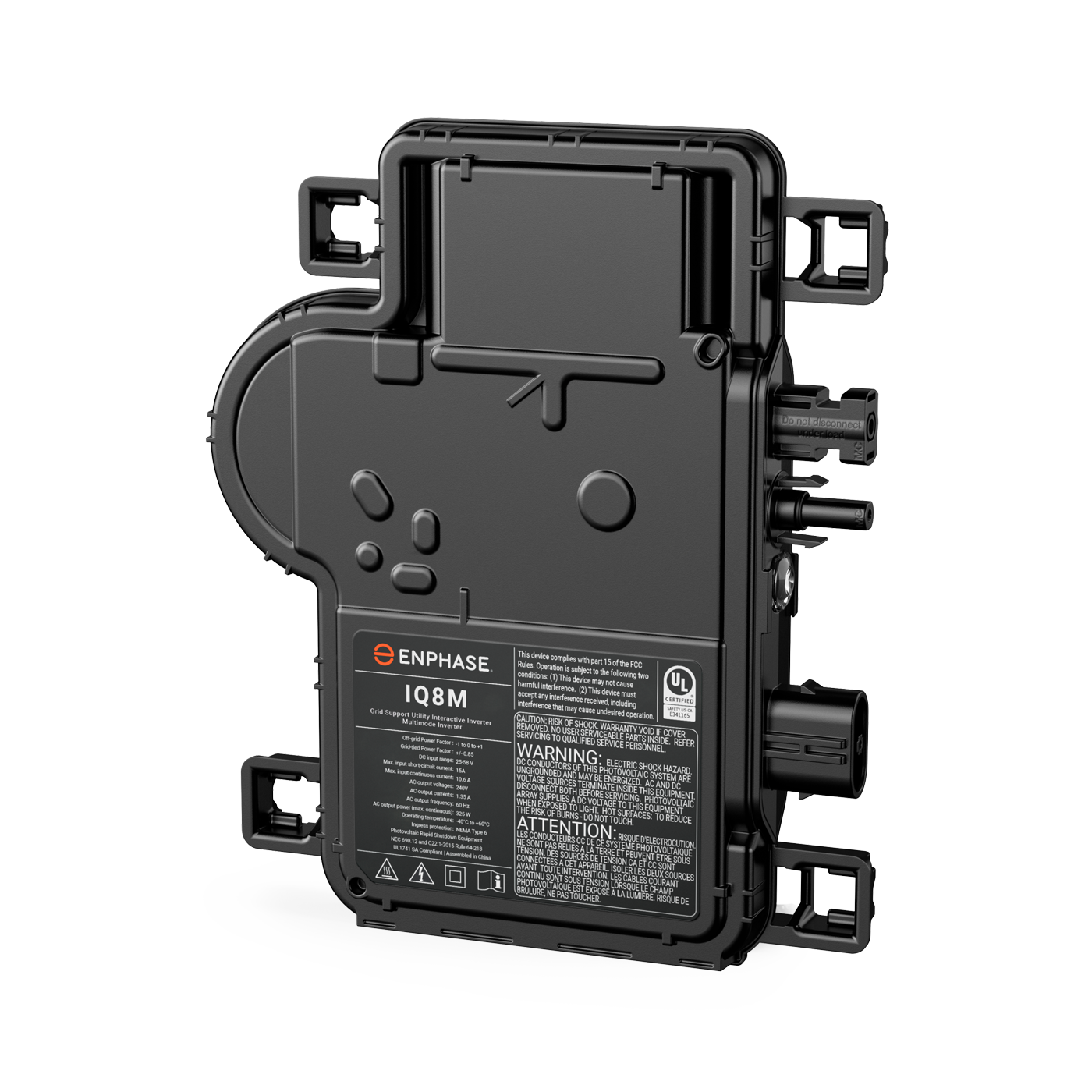

IQ8M Microinverter (MC4)
- Our newest IQ8M Microinverters are the industry’s first grid-forming
- Microinverters with split-phase power conversion capability to convert DC power to AC power efficiently.
- Chip is built in advanced 55nm technology
- High-speed digital logic and has super-fast response times to changing loads and grid events
- IQ8M Microinverters integrate with the Enphase IQ Battery
- Enphase IQ Gateway
- Enphase App monitoring and analysis software.
SOL-ARK 15K-2P
UL: Limitless 15K-LV
“One inverter to RULE them all!” The Generator Eliminator
- Max. Allowed PV Power (STC) -19,500W
- Nominal Voltage Range 175 – 425V
- Max. AC Coupled Input 19,200W
- Nominal AC Voltage 120/240V, 120/208V, 220V
- Grid Frequency 50 / 60Hz
- Battery Technologies Lithium / Lead Acid
- Capacity 50 — 9900Ah
- 5-Year Standard Warranty Included

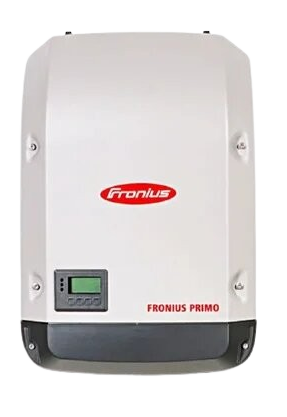

Fronius Primo 15.0-1 15kW 240/208VAC TL Inverter
- Continuous AC Power Output 15000 W
- Max Operating Voltage 600 V
- Min Operating Voltage 80 V
- AC Voltages 120, 208, 240 VAC
- AC Frequencies 60 Hz
- Recommended PV Input (STC) 18000 W
- Maximum DC Input Voltage 600 VDC
- Maximum DC Input Current 51 A

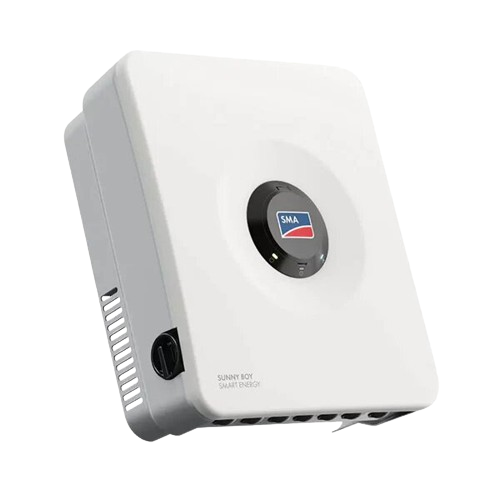

SMA Smart Energy 3.6
The 1-phase 2-in-1 hybrid inverter by SMA
- Inverter type: Hybrid Inverter
- Output: 3,6 kW
- Feed: Single phase
- Integrated yield optimisation with SMA ShadeFix
- Optional back-up function (available with a later hardware release)
- Integrated emergency power supply Secure Power Supply
- Compatible with the SMA Home Storage battery
